Product Details:
|
Color: | Black Or Clear | ESD Value: | 10E5 To 10E9 |
---|---|---|---|
Size: | 56mm | Material: | PS/PC |
Cover Tape: | Can Provide | Reel: | Can Provide |
Length: | 1000m | Place Of Origin: | China |
High Light: | 56mm Paper Carrier Tape,Paper Carrier Tape Conductive,Conductive Paper Carrier Tape |

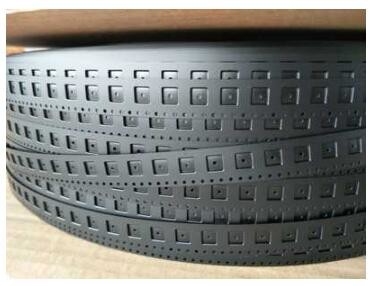

56mm Paper Carrier Tape Conductive For Loading Electronic Components

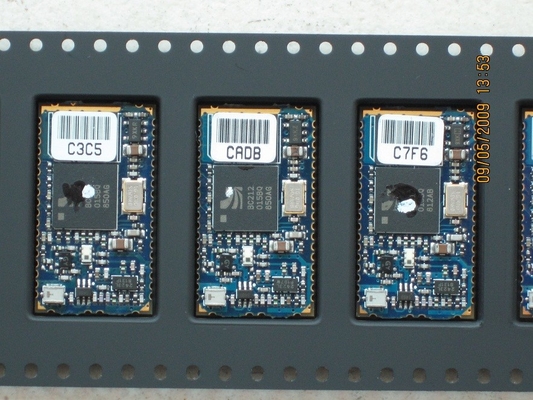

Carrier tape provides protection to semiconductor devices and other electronic devices from physical and electro-static discharge damage during transportation and storage, as well as being the best solution for clean, position-oriented and automated placement of components and their further processing.
Delixin already implemented over a thousand solutions for customers into many different industries.
Our carrier tape is manufactured in PC, PET, PP, PS and ABS. They are also available in normal, antistatic or conductive versions. We offer carrier tape in widths ranging from 4 mm to 72 mm with a minimum cavity size of 0.2 mm times 0.4 mm and maximum depth of 30 mm. The material thickness depends on the tape design, the cavity and customer-specific requirements. The forming mold design with punch form or die form depends on the piece part feature.
