Product Details:
|
Material: | PC | ESD Reading: | 10E6-10E9 |
---|---|---|---|
Color: | Clear | Logo: | According To The Customer Require |
Size: | Customization | ||
High Light: | Ic Plastic Packaging Tube Rectangular,Light Duty Ic Plastic Packaging Tube,ROHS ic tube packaging |

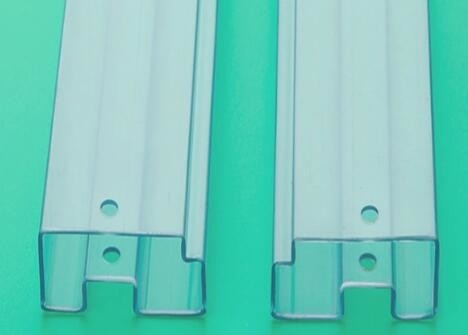

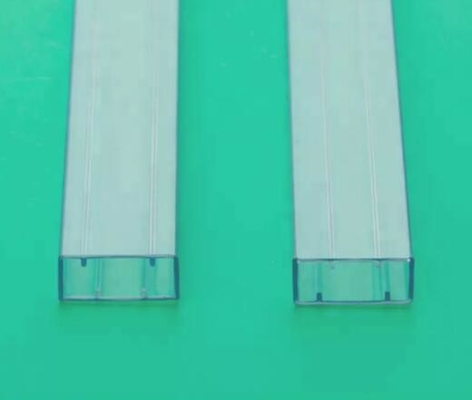

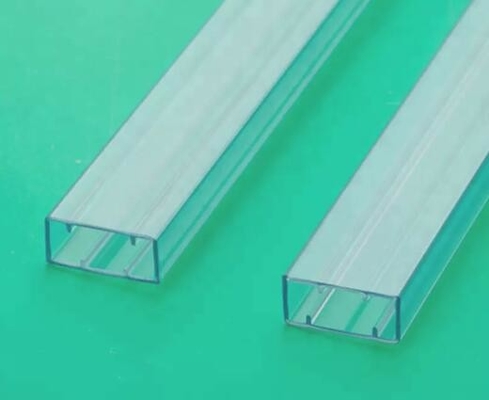

High Level Ic Tube Packaging Transparent Hard Packaging Tube Rectangular Tube
Product Description
Tube for anti-static ESD Sensitive IC and module.
The products are widely used in the packaging of IC, individual components, electrical modules, transformers, LED and other precision electronic components.
Regarding to the anti-static or ESD, it is depend on the reqirement if the component is ESD sensitive, we can make ESD coating on the carrier or tube.
The main material is PVC and PS.
IC Shipping Tube Benefits:
Offering ESD anti static protection
20″ long (custom lengths available 7-14 day lead time)
Small quantity or large volume orders
Black Conductive Tubes with and without windows available as special order
Available for: DIP, PLCC, LCC, LPCC, MFL, SOIC, SOJ, SOP, SSOP, TSSOP, QNF
Pins, rubber stoppers and tube end plugs also available.
Custom Made Sized Tubes
There many different configurations and sometimes not a one tube fits all scenario contact us for custom sized tubes.
Anti static ic tubes are used for transporting components from supplier to end user.
Tubes are also used for loading into machines that assemble integrated circuit boards.
Our plastic shipping tubes are made of clear anti-static PVC with writing printed or imbedded on the tube specifiying they are anti-static.
For quoting tubes Big Valley Packaging will need one of the following:
Drawing of the tube you wish to order
Drawing of the integrated circuit component thats going into the tube
A sample tube if there is no drawing
If none of the above is available, we will need your physical component that goes into the tube so we can take measurements.
Custom Manufactured IC Shipping Tube Considerations
One time tooling set up cost
Tube tooling is not a cost we have control over
Extruded integrated circuit tube tooling must be designed & manufactured based on the shape of the extrusion
Minimum tube order requirement
End Caps/Stoppers for Tubes
Tubes will need to have some form of stopper, plug, or pin at each end
Tube stopper plugs are not included into the price of the tube, they are always quoted as an additional item
Stopper Types:
Rubber caps that go over the end of the tube
Rubber plug stoppers that are pushed into each end of the tube
Hard plastic caps that are pushed into the end of the tube
Plastic pins that are pushed/pulled into holes that have been drilled into the tube
Colored plugs are available for some of the tube stoppers
Contact us for a price quote on your next tube and stopper project.
