Product Details:
|
| Color: | Black Or Clear | ESD Value: | 10E5 Or NO |
|---|---|---|---|
| Size: | Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm | Material: | PS/PC/PET |
| Cover Tape: | Can Provide | Reel: | Can Provide |
| Length: | 50m | ||
| Highlight: | Electronic Components Embossed Carrier Tape,Embossed Carrier Tape ROHS,88mm Embossed Carrier Tape |
||

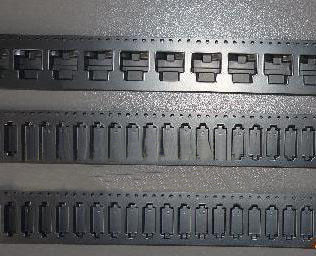

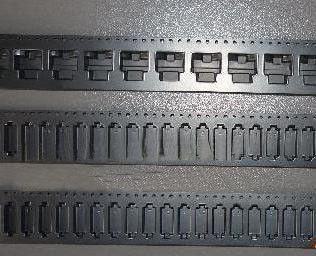

Product Overview: 88mm Embossed Carrier Tape with Cover Tape (ROHS Approved)
The 88mm Embossed Carrier Tape is a high-performance packaging solution designed for the secure and efficient handling of precision electronic components. Manufactured in compliance with EIA-481 standards and ROHS directives, it ensures optimal protection for sensitive Surface Mount Device (SMD) components during transportation, storage, and automated assembly processes. Its robust design features precisely embossed pockets that cradle components, safeguarding them from physical damage, contamination, and electrostatic discharge (ESD) when used with its companion cover tape.
Key Features
Wide Compatibility & Precision Engineering: Available in a comprehensive range of widths from 8mm to 88mm, with tight tolerance control on pocket dimensions to ensure seamless alignment with automated pick-and-place equipment. The deep, uniform pockets provide superior component protection.
Material Versatility & ESD Protection: Made from high-quality PS, PC, or PET materials. Offered in both conductive (anti-static, typically black) and non-conductive (non-static, typically transparent) types to meet specific ESD safety requirements for components like ICs, LEDs, and connectors.
Customization & Compliance: Customizable parameters include pocket size, embossing depth (up to 23mm), and tape thickness (0.3mm to 2.0mm). All products are designed to meet industry standards including EIA-481 and are ROHS compliant.
Complete System Solution: Designed to work seamlessly with matching cover tapes (available in heat-sealing or cold-sealing options) and durable plastic reels, providing a complete packaging system for automated SMT production lines.
Technical Specifications
|
Parameter |
Specification |
|---|---|
| Tape Width |
88mm (Standard range: 8, 12, 16, 24, 32, 44, 56, 72, 88mm)
|
| Materials |
PS (Polystyrene), PC (Polycarbonate), PET (Polyester)
|
| ESD Properties |
Conductive (Anti-static) / Non-Conductive
|
| Standard Color |
Black, Transparent
|
| Thickness |
0.3mm - 2.0mm (Customizable)
|
| Cover Tape Width |
81.5mm (Matched for 88mm carrier tape)
|
| Standards Compliance |
EIA-481, ROHS
|
| Minimum Order Quantity (MOQ) |
100 meters (Can vary by supplier)
|
Applications
This carrier tape is ideal for packaging a wide array of electronic and hardware components, including:
Integrated Circuits (ICs): BGA, QFP, QFN, SOP series.
Passive Components: Chip capacitors, resistors, and inductors.
Semiconductors & More: Diodes, LEDs, connectors, relays, fuses, and transformers.
Quality Assurance
Produced in high-cleanliness workshops to ensure product cleanliness and consistent quality.
