Product Details:
|
| Color: | Black Or Clear | ESD Value: | 10E5 Or NO |
|---|---|---|---|
| Size: | Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm | Material: | PS/PC/PET |
| Cover Tape: | Can Provide | Reel: | Can Provide |
| Highlight: | SGS Standard Carrier Tape,Conductive Embossed Carrier Tape,16mm Embossed Carrier Tape |
||

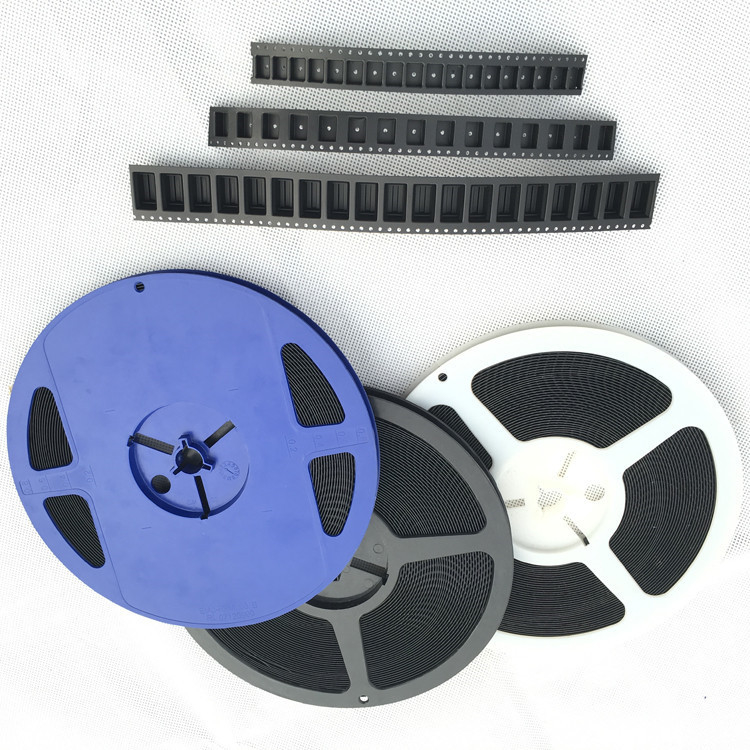

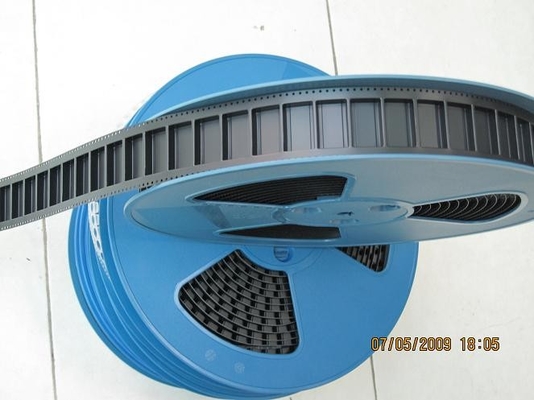

SGS Standard Electronic Component Carrier Tape Conductive For Capacitance
|
Item
|
Conductive
|
ESD
|
Antistatic
|
Normal
|
|
Density(+-0.02)
|
1.06g/cm3
|
1.06g/cm3
|
1.06g/cm3
|
1.06g/cm3
|
|
Thickness(+-0.015)
|
0.2mm-0.6mm
|
0.2mm-0.6mm
|
0.2mm-0.6mm
|
0.2mm-0.6mm
|
|
S.R.(Ω)
|
4-6Ω
|
6-9Ω
|
9-11Ω
|
≥1012
|
|
Max.width (+-1.0mm)
|
12mm-640mm
|
12mm-640mm
|
12mm-640mm
|
12mm-640
|
|
Max.length(+-1m)
|
1150m
|
1150m
|
1150m
|
1150m
|
This conductive sheet is a reliable material for carrier to protect and transport electrostatic-sensitive electrical and electronic devices,and precisely delivering then to the assemble point. Electrically-conductive properties on plastic are realized by special coating technology or compounding technology.
And it is noteworthy that almost all categories of our items could be customized if our clients have some special requirements .
Specification:
1. Width: From 8mm~200mm (Tolerance: ± 0.1mm) ;
2. Thickness: 0.2mm~2.5mm (Tolerance: ± 0.02mm) ;
3. Length is customized. it can be jumbo roll,slitted roll or strips
4. Density: 1.06g/cm3
5. Color: black,
6. Surface resistivity: 10e4~10e6 ohms
7. Process: Monolayer 3 layers co-extrustion
8. One side is glossy another side is matte
9. Certificates: ISO9001, REACH, CTI RoHS.
Features
● Less Burrs and fines
● Good compatibility with different kinds of cover tape
● Stable surface resistivity after thermoforming.
● Increase in workabilibty
● Less outgas. Protect expensive electronic components.
● Consistent seal within EIA 481 requirements.
