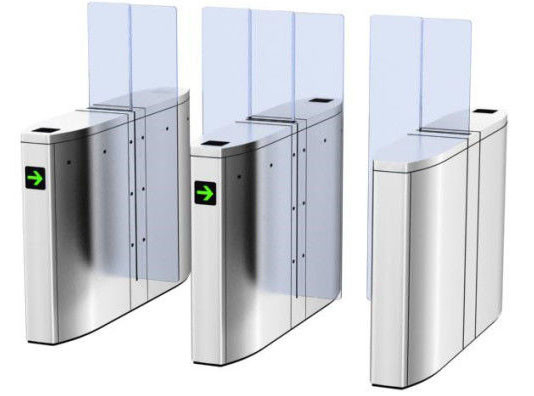

Smart RFID Safe Entry Turnstile , Pedestrian Barrier Gate Arc Shaped

Smart RFID Pedestrian Barrier Gate Arc Shaped Automatic Systems Turnstiles

Product Classification

Model:DLX-401

Product Presentation

1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,

2. Dimensions: Length1400xWidth300× height 1000 (mm)

3. Weight:110kg.

4. Brake lever steering: one-way and two-way (optional)

5. Working environment: indoor and outdoor(It's better to have a shelter outside)

Standard featuresInfrared * mechanical double clamping function: automatic mechanical clamping is safer and more reliable when the gate is running;
◆ the electric control is driven by servo motor, encoder chuck movement, anti-collision durable, stable and reliable, self-check on electricity, low failure rate;
◆ ultra bright traffic indicator function: the direction indicator adopts the ultra bright LED lamp design, the indication is more eye-catching;
◆ crossing alarm function: if the pedestrian does not swipe the card to enter the channel, the device will alert the pedestrian to swipe the card;
◆ reverse traffic alarm switch function: after the pedestrian swips the card, reverse traffic, equipment alarm switch off at the same time;
◆ anti-trailing function: when the first person swipes the card to pass, the second person does not swipe the card to follow and alarm;
◆ delay function: prevent the gate from hitting the bicycle;
◆ various control functions: through setting, the brake can be set to the normally open mode in a special period of time to meet the needs of a large number of people;

Extend the functionality

◆ channel indication: the customer can choose large channel indication more eye-catching.

Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;


To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
