Product Details:
|
| Material: | PS/PC/PET | Size: | Width 8-88mm |
|---|---|---|---|
| Length: | Customize | Color: | Black/Blue/White |
| ESD Value: | 10E5-10E10 / NO | Company's Name And Logo: | Available |
| Highlight: | Plastic Reel Carrier Tape,13 Inch PS Carrier Tape,88mm Width Embossed Carrier Tape |
||

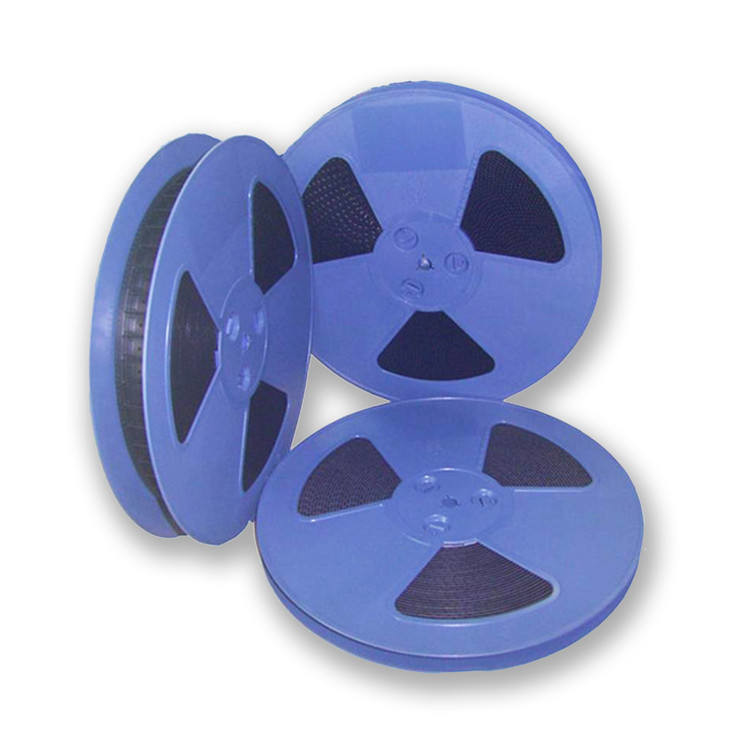

13 inch plastic reel carrier tape
About our plastic reel:
#1. We have the big plastic reel workshop mainly producing these series of reels.
#2. Our mainly structure: Button style or jointing style.
#3. We can printing you company's name and logo on the plastic reel
#4. PS or Hips plastic reel.
#5. The Size:
180mm(Outer Dia) * 60mm(Inner Dia)*8/12/16/24mm:white/black/blue.
330mm(Outer Dia) * 80/100/150/200/250mm(Inner Dia)*8mm-88mm:white/black/blue.
380mm(Outer Dia) * 80/100/150/180/200mm(Inner Dia)*12mm-88mm:white/black/blue.
SMT Package Match Between The Carrier Tape /Cover Tape / Plastic Reel:
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 |
| Plastic Reel(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |

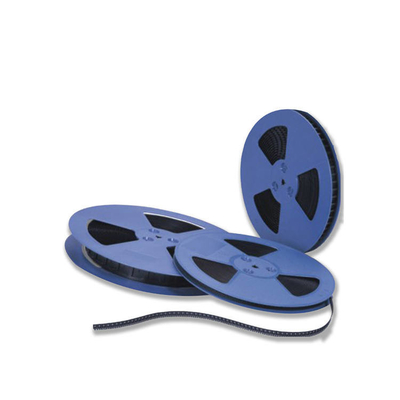

You could check more pictures as below:
