ESD and Moisture Protection with SMD Embossed Carrier Tapes and Reels for Electronics Manufacturing

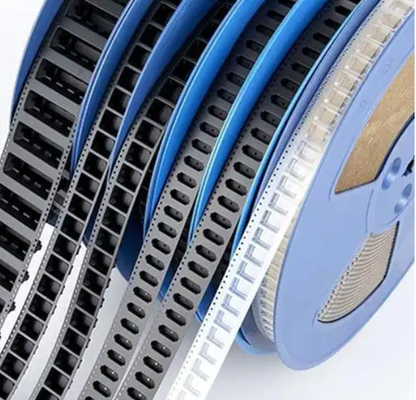

Precision - Engineered SMD Embossed Carrier Tapes and Reels for Electronics Manufacturing In the fast - paced world of electronics manufacturing, the seamless handling and protection of surface - mount devices (SMDs) are crucial. Our SMD Embossed Carrier Tapes and Reels are designed to meet the exacting demands of modern production lines, ensuring efficient component storage, transportation, and automated assembly.

1. Carrier Tape Features - Exceptional Material Quality:

Crafted from high - grade polyester (PET) or polypropylene (PP) materials, these carrier tapes offer outstanding durability. The base material provides excellent resistance to abrasion, ensuring long - term use without wear and tear. Additionally, the tapes are engineered to have low outgassing properties, which is vital in preventing contamination of sensitive components. - Precision Embossing: The embossed pockets on the carrier tapes are manufactured with utmost precision. They are available in a wide range of standard sizes, accommodating SMDs from 0402 to 2225 metric dimensions. The tight tolerance control, within ±0.05mm, guarantees a perfect fit for each component, minimizing the risk of movement during handling and transportation. - ESD and Moisture Protection: To safeguard SMDs from electrostatic discharge (ESD) and moisture - related damage, the carrier tapes are equipped with ESD - dissipative coatings and moisture - resistant layers. The ESD - dissipative property, with a surface resistivity in the range of 10⁶ - 10¹¹ ohms per square, effectively neutralizes static charges, while the moisture - resistant layer prevents the ingress of humidity, preserving the integrity of the components.

2. Reel Characteristics - Sturdy Construction:

The reels are made from robust, anti - static plastic materials. This construction not only provides strength to hold the carrier tape but also ensures ESD protection throughout the entire packaging system. The anti - static property helps in preventing the accumulation of static charges on the reel, which could potentially damage the components on the tape. - Optimal Winding and Unwinding: Engineered with precision, the reels allow for smooth winding and unwinding of the carrier tape. The spool design ensures consistent tension, preventing tape slippage or component shifting during transportation and automated assembly processes. This smooth operation is essential for high - speed pick - and - place machines, reducing the risk of jams and errors. - Standardized Sprocket Holes: The reels feature standardized sprocket holes with pitches of 4mm, 8mm, 12mm, or 16mm. These holes are precisely aligned to match the indexing mechanisms of various automated assembly equipment, enabling seamless integration into production lines and ensuring accurate component feeding.

3. Compatibility and Customization - Industry - Standard Compatibility:

Our SMD Embossed Carrier Tapes and Reels are fully compatible with all major brands of pick - and - place machines and other automated assembly equipment. They adhere to international standards such as EIA - 481 - C, ensuring seamless operation in global electronics manufacturing facilities. - Customization Options: We understand that different manufacturing processes may have unique requirements. Therefore, we offer customization services for both the carrier tapes and reels. This includes custom pocket depths, widths, and tape thicknesses for the carrier tapes, as well as custom reel sizes, colors, and printed markings for identification and traceability purposes.

4. Quality Assurance - Rigorous Testing:

Every batch of SMD Embossed Carrier Tapes and Reels undergoes strict quality control tests. These tests include dimensional accuracy checks, ESD performance verification, moisture resistance testing, and adhesion strength evaluation of the carrier tape. Only products that meet our high - quality standards are released for shipment. - ISO - Certified Manufacturing: Our manufacturing facilities operate under ISO 9001:2015 certification, ensuring that the production processes are standardized, efficient, and focused on delivering products of consistent quality. This certification reflects our commitment to providing reliable and high - performing packaging solutions for the electronics industry. Whether you are manufacturing consumer electronics, automotive components, or medical devices, our SMD Embossed Carrier Tapes and Reels are the ideal choice for protecting your valuable SMDs and streamlining your production processes.
