Chemical Resistant Carrier Tape Reel for Long-Lasting Electronic Component Packaging Performance

Carrier Tape Reel:

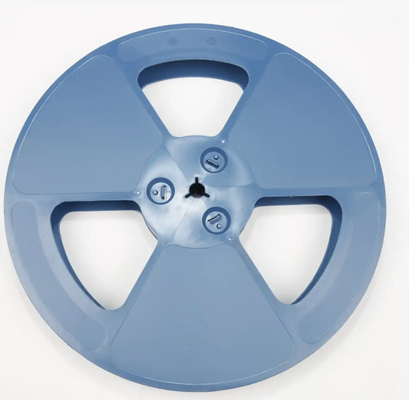

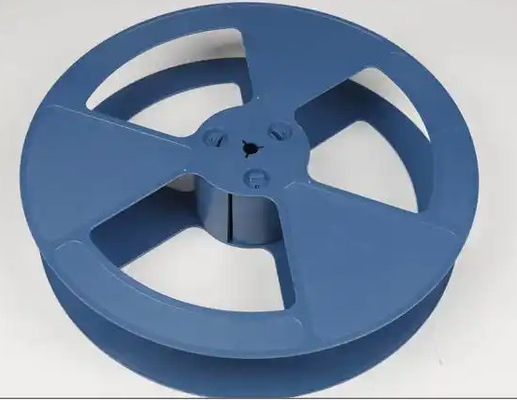

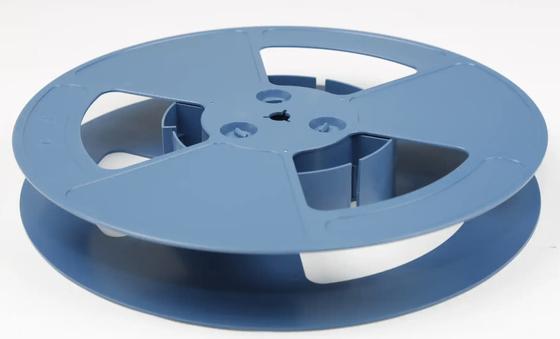

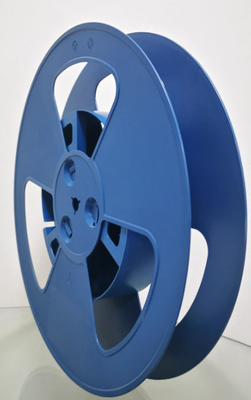

Precision Packaging for Electronic Components Our Carrier Tape Reel is an indispensable solution for the secure and organized packaging of electronic components during manufacturing, storage, and transportation processes. Design and Structure - Robust Reel Body: Constructed from high - quality, impact - resistant plastic materials like polypropylene (PP) or ABS. The reel has a sturdy core with precisely machined grooves to ensure a smooth and stable rotation during component handling. Its outer diameter and flange height are optimized to hold a substantial amount of carrier tape while maintaining structural integrity.

- Carrier Tape Integration:

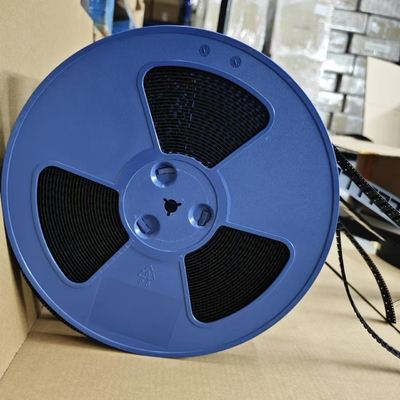

The tape is precisely wound around the reel. The carrier tape features evenly spaced pockets, each designed to snugly fit a specific type of electronic component, such as resistors, capacitors, integrated circuits (ICs), or transistors. The pockets are engineered with tight tolerances to prevent component movement, minimizing the risk of damage during handling. Material Composition - Reel Material: The use of PP or ABS in the reel construction offers excellent chemical resistance, protecting the reel from degradation caused by exposure to various manufacturing chemicals. These materials also have good dimensional stability, ensuring that the reel maintains its shape and performance over time, even in different environmental conditions.

- Carrier Tape Material:

The carrier tape is typically made of a combination of polymers, often with a base of polyester (PET) or polycarbonate (PC). These materials provide a high level of strength and flexibility, allowing the tape to be easily formed into pockets while withstanding the stress of repeated component insertion and extraction. Additionally, they offer good insulation properties, which are crucial for protecting sensitive electronic components from electrostatic discharge (ESD).

Functional Advantages - Automated Assembly Compatibility:

Our Carrier Tape Reel is designed to be fully compatible with automated pick - and - place machines used in modern electronics manufacturing. The precise pocket placement and consistent tape quality enable high - speed, accurate component placement, significantly increasing production efficiency and reducing assembly errors.

- ESD Protection:

The carrier tape and reel are often treated with anti - static coatings or made from inherently static - dissipative materials. This ensures that static charges are effectively neutralized, protecting delicate electronic components from ESD damage, which can lead to component failure or reduced functionality.

- Component Protection:

The snug - fitting pockets in the carrier tape securely hold components in place, preventing them from being jostled, scratched, or otherwise damaged during handling, storage, and transportation. The reel's design also protects the tape from tangling or tearing, further safeguarding the enclosed components.

- Traceability and Inventory Management:

The reel can be easily labeled with product information, batch numbers, and manufacturing dates. This makes it convenient for manufacturers to track components throughout the supply chain, manage inventory levels, and ensure product quality control.

Applications - Electronics Manufacturing:

Widely used in the production of printed circuit boards (PCBs) for various electronic devices, including smartphones, tablets, laptops, and consumer electronics. The Carrier Tape Reel simplifies the process of component feeding into automated assembly lines, streamlining production and improving overall product quality.

- Component Distribution:

Ideal for distributors of electronic components. The reel - based packaging allows for easy storage, handling, and transportation of components in large quantities, ensuring that components reach manufacturers in optimal condition. - Automotive Electronics: In the manufacturing of automotive electronic systems, such as engine control units, infotainment systems, and advanced driver - assistance systems (ADAS). The high - reliability component packaging provided by the Carrier Tape Reel is essential for ensuring the long - term performance and safety of automotive electronics.
