Aluminum ESD PCB Magazine Rack 355x320x563mm with 50-Board Capacity

Aluminum ESD PCB Magazine Rack — 50-Board Storage and Handling

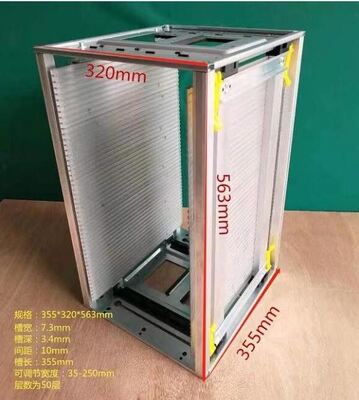

The AcePlas aluminum ESD PCB magazine rack provides a dedicated format for organizing printed circuit boards during storage and production handling. With overall dimensions of 355 x 320 x 563 mm and a listed capacity of 50 PCBs, it helps teams group boards in a slotted rack rather than placing them in loose stacks on a work surface.

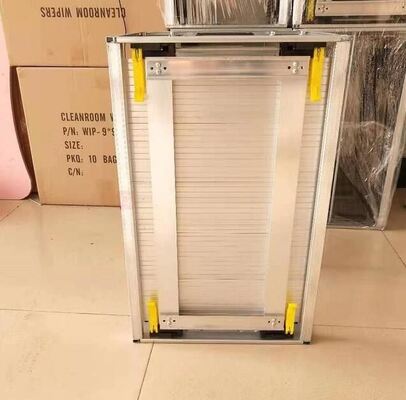

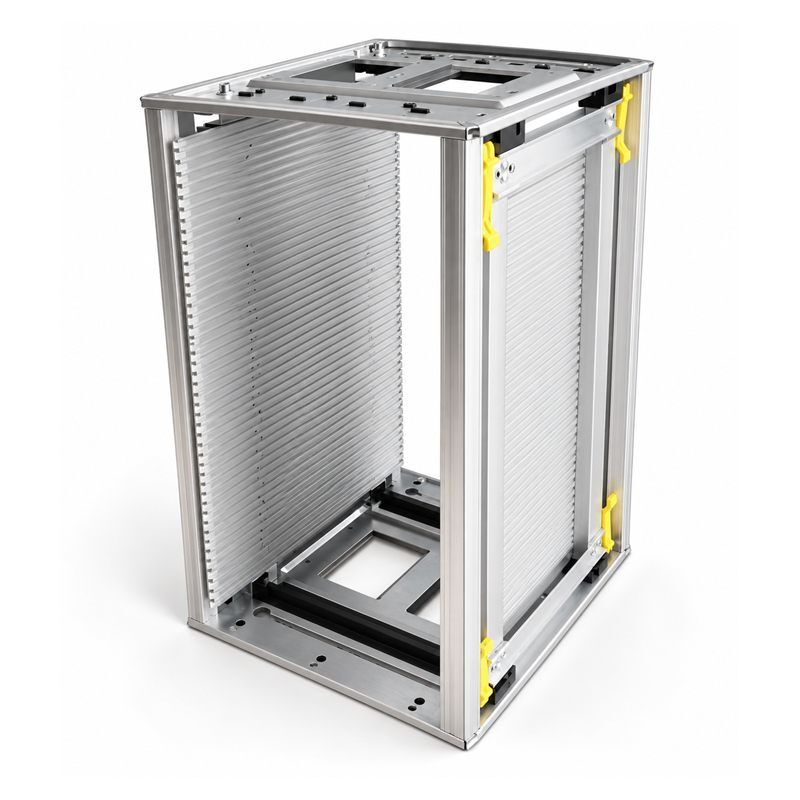

The open-frame construction and facing guide panels shown in the product photographs provide access to individual board positions. This arrangement is useful when boards need to be loaded, identified, removed, and transferred between handling stages. The rack is supplied as one set per carton, with orders starting from a single set.

Technical Specifications

Organized PCB Storage

The magazine format offers separate guide positions for boards, making it practical to arrange a batch in one rack. Its 50-board capacity provides a clear reference when planning work-in-progress storage and handling quantities. Actual loading should take the board outline and populated-component clearance into account.

For teams handling several board designs, checking fit before ordering helps ensure that the selected rack matches the intended PCB. Overall rack dimensions describe the external envelope; they should be considered alongside the board dimensions when selecting a suitable storage arrangement.

Features at a Glance

• Aluminum construction: a metal rack format for PCB storage and production handling.
• 50-PCB capacity: slotted board organization within a single magazine.
• Defined overall size: 355 x 320 x 563 mm for workstation and storage-space planning.
• Maximum heat resistance of 80°C: a specified temperature limit to consider when matching the rack to a handling process.
• Single-set ordering: minimum order quantity of one set for initial procurement.

Typical Handling Applications

This PCB magazine rack is intended for board storage, work-in-progress organization, and transfer between electronics production handling stages. It can be considered for assembly support areas and inspection queues where PCBs need designated positions while awaiting the next operation.

When selecting the rack, provide the PCB dimensions and the intended handling conditions. If boards are transferred after a heated process, their temperature at loading should remain within the rack's stated 80°C maximum. Confirm board fit and component clearance for the particular assembly being handled.

Ordering and Delivery

Contact AcePlas with the required quantity, PCB dimensions, and intended application to discuss this 50-board aluminum PCB magazine rack.
