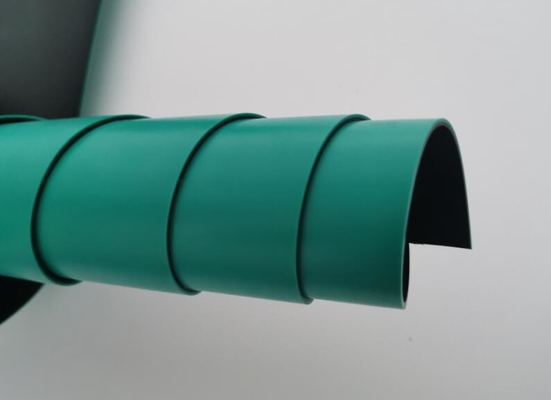

1M Width ESD Anti Static Table Cover glossy Surface For Cleanroom

ESD mat

1.Material:

ESD rubber mat made of anti-static(conductive) and static-dissipative materials as well as synthetic rubber. The surface layer is a 0.5mm thick static-dissipative layer. The bottom layer is 1.5/2.5mm conductive layer. Generally, 2mm/3mm thick double-layer structure is used.

2.Description:

1).Anti-static rubber mat or ground mat should be laid out in the workshops and advanced laboratories for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc.

2). When anti-static rubber mat (ground mat) are laid out and grounded, the working surface will discharge the static electricity of human bodies so that a near-equipotential can be maintained for ESEDS tweezers, tools, utensils and instruments, through which human bodies contact the working table and static sensitive devices(SSD) are free from broadband interference produced by static discharging such as triboelectrification etc. In this way, electrostatic protection is realized

3). To eliminate damages caused by static electricity.

3.Application

Electronics Factory
Pharmaceutical factory
Chemical plant
Clean room
Laboratory

4.Specifications

Thickness 2mm/3mm/4mm/5mm
Width 1m/1.2m/custom made
Length 10m

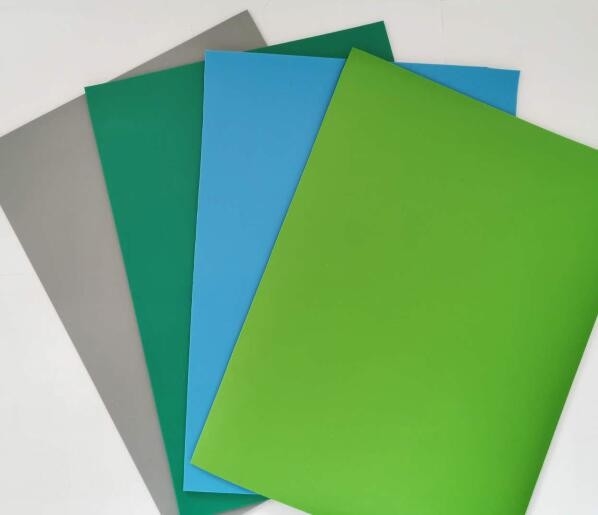

Color Green/ Grey/Blue/Black
Surface effect Dull/Glossy
Up side surface resistance 10E7-10E9 ohm
Bottom side surface resistance 10E3-10E5 ohm
