Product Details:
|
| Color: | Black Or Clear | ESD Value: | 10E5 To 10E9 |
|---|---|---|---|
| Size: | 8mm,12mm,16mm,24mm,32mm,44mm | Material: | PS/PC/PET |
| Cover Tape: | Can Provide | Reel: | Can Provide |
| Highlight: | 88mm ESD Packaging Tape,8mm ESD Packaging Tape,ESD smt tape and reel |
||

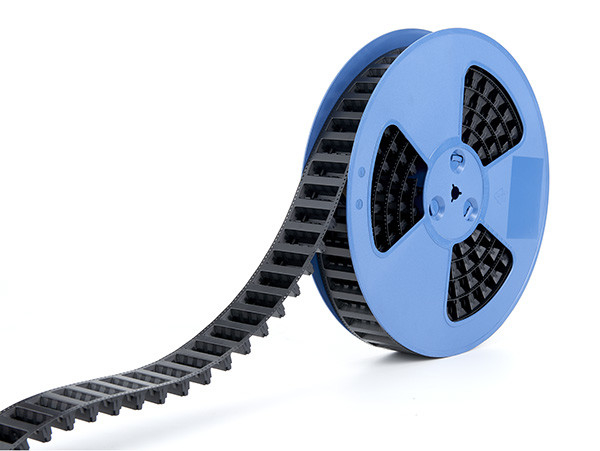

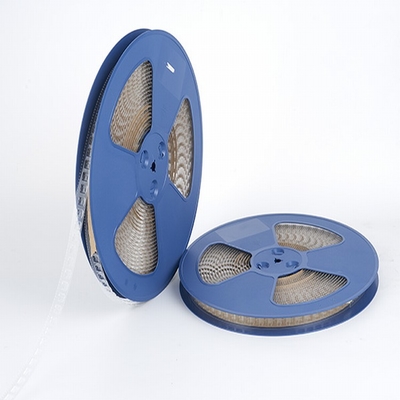

8mm - 88mm SMT Carrier Tape Environment Friendly For Fuse Bead Capacitor
Carrier tape
8-88mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.
| Item | Method | PS | A-PET | ||
|---|---|---|---|---|---|
| CEL-E980A (Conductive Type) |
CEL-E981B (Conductive Type) |
FSL-5100D (Conductive Type) |
|||
| Tensile yield strength (MPa) |
JIS K6734 | MD | 37 | 50 | 66 |
| TD | 38 | 48 | 67 | ||
| Fracture elongation (%) |
JIS K6734 | MD | 60 | 40 | 400 |
| TD | 35 | 30 | 400 | ||
| Tensile Strength (N/mm) |
JIS K7128 | MD | 120 | 140 | 265 |
| TD | 130 | 140 | 265 | ||
| Tensile impact strength (KJ/m2) |
JIS K7160 (ISO 8256) | MD | 250 | 350 | 400 |
| TD | 180 | 250 | 390 | ||
| Folding endurance (times) |
JIS P8115 | MD | >1000 | 300 | >1000 |
| TD | >1000 | 200 | >1000 | ||
| Glass transition temperature (°C) |
JIS K7121 | 100 | 110 | 73 | |
| Surface Resistivity (Ω/□) |
JIS K6911 | 1x105 | 1x105 | 5x105 | |
