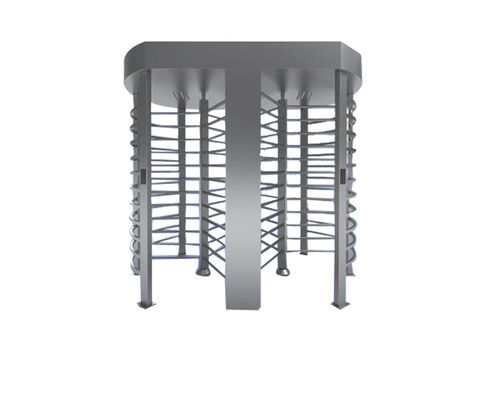

DLX-503 Full Height Mechanical Turnstile - 304 Stainless Steel, 30 Persons/Min, Semi-Automatic

Product Overview

The DLX-503 Full Height Mechanical Turnstile​ is a high-security, robust access control gate designed for environments demanding maximum physical barrier protection and large pedestrian flow management. Constructed entirely from heavy-duty 304 stainless steel (≥1.5mm thickness), it is built to withstand intensive use, vandalism, and harsh weather conditions. As a semi-automatic mechanical turnstile, it provides a reliable, low-maintenance, and long-lasting​ security solution for transportation hubs, corporate entrances, and other high-traffic public areas.

Key Features & Advantages

• Maximum Physical Security:​ The full-height rotating barrier​ design creates a formidable physical deterrent that prevents climbing, crawling, and unauthorized forced entry, reducing the need for constant supervision.

• Industrial-Grade Durability:​ Made from rust-proof 304 stainless steel​ with an IP54 protection rating, ensuring exceptional longevity and resistance to corrosion in both indoor and outdoor settings.

• Reliable Semi-Automatic Mechanism:​ Utilizes a robust solenoid, electromagnetic lock, and hydraulic damper​ system for a smooth, low-impact, and quiet operation. Ensures the arm is locked until a valid signal is received.

• Safety & Fire Compliance:​ Features a standard fire safety interface. In case of an emergency or power failure, the barrier can be manually rotated freely​ to facilitate rapid evacuation, even without a complete power cut-off.

Detailed Specifications

Key Features & Intelligent Functions

1. High Security & Self-Sufficient:​ Anti-climbing design; operates effectively without the need for constant guarding.

2. Fail-Safe Mechanism:​ Barrier rotates freely when power is off (fail-safe); locks securely when powered.

3. Controlled Access:​ Arm unlocks only upon receiving a valid verification signal.

4. Automatic Reset & Memory:​ Resets and locks automatically after passage; supports multiple valid entries for group access ("Pass Request Memory").

5. Flexible Traffic Control:​ Configurable for one-way​ or two-way​ pedestrian flow.

6. Easy Integration:​ Standard dry contact inputs and outputs allow seamless connection with a wide range of access control devices (card readers, etc.) and central PC management.

Applications

This turnstile is ideal for managing secure access in high-traffic, high-security environments:

• Transportation Hubs:​ Subway stations, airports, railway stations, ferry terminals.

• Corporate & Institutional:​ Enterprise entrances, office buildings, government facilities, universities.

• Public Venues:​ Stadiums, amusement parks, exhibition centers, swimming halls, residential areas.

• High-Security Zones:​ Locations requiring special access control and charge management.

Why Choose the DLX-503?

It represents a perfect blend of sheer physical strength and reliable mechanical operation. With no motor to fail in critical moments and unparalleled durability, it offers a maintenance-friendly, long-term perimeter security solution​ that ensures controlled, orderly pedestrian flow and enhances the overall safety of your facility.
