Product Details:
|
| Tape Material: | PS / PC / PET | Tape Color: | Black / Clear / Etc |
|---|---|---|---|
| Tape Width: | 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm | ESD Value: | 10E5 Ohm, 10E11 Ohm, Or Non-ESD (optional) |
Features Overview

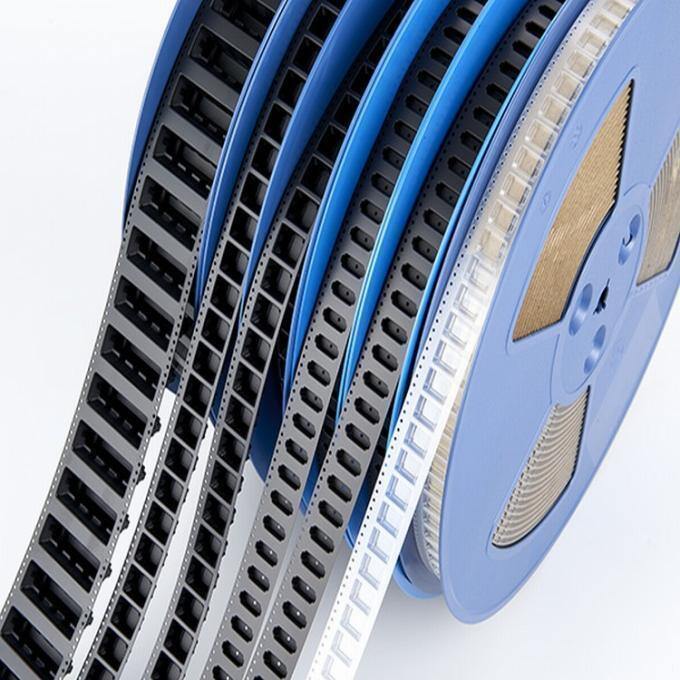

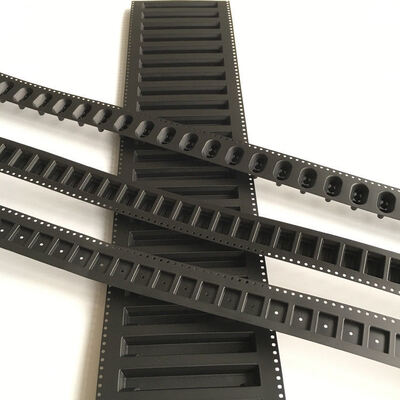

This SMT embossed carrier tape is designed for reliable packaging and automated handling of surface mount devices. Precision-molded cavities hold SMD components securely during storage, transportation and high-speed pick-and-place production. It is available in PS, PC and PET materials with optional ESD performance, adapting to different component sensitivity levels. Fully compatible with standard SMT equipment, it ensures stable feeding and accurate positioning. Matching cover tape and reel can be supplied together for a complete one-stop packaging solution.
Standard Width Reference
| Tape Width | Typical SMD Components |
|---|---|
| 8mm / 12mm | 0201–0805 resistors, capacitors, small diodes |
| 16mm / 24mm | SOT, SOP, small IC packages |
| 32mm / 44mm | Medium ICs, QFP, connectors |
| 56mm / 72mm / 88mm | Large ICs, power modules, connectors |
Function
- Precision cavities securely hold SMD components to prevent shifting and damage
- Optional ESD protection safeguards sensitive chips from electrostatic discharge
- Compatible with all standard high-speed SMT pick-and-place machines
- Stable dimensional tolerance ensures smooth, jam-free feeding
- Multiple material options match different temperature and cost requirements
- Matching cover tape and reel available for complete packaging solution
Application
1. High-volume SMT production lines for consumer electronics
2. Packaging of semiconductor ICs, passive components and connectors
3. Automotive and industrial electronic component storage and shipping
4. Medical device electronic component packaging
5. LED and optoelectronic component packaging
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | SMT Embossed Carrier Tape |
| Brand | ACE DELIXIN |
| Model | 8mm-88mm |
| Material | PS / PC / PET |
| Color | Black / Clear |
| Tape Width | 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm |
| ESD Value | 10E5 Ohm, 10E11 Ohm, or Non-ESD |
| Supporting Accessories | Cover tape, reel (available) |
| Certification | ROHS, SGS |
| Place of Origin | China |
| MOQ | 2000 Meters |
| Unit Price | USD 0.1 – 6 / meter |
| Supply Capacity | 200,000 meters / month |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T, D/A, D/P, L/C, Western Union |
| Packing | Carton box packing |
