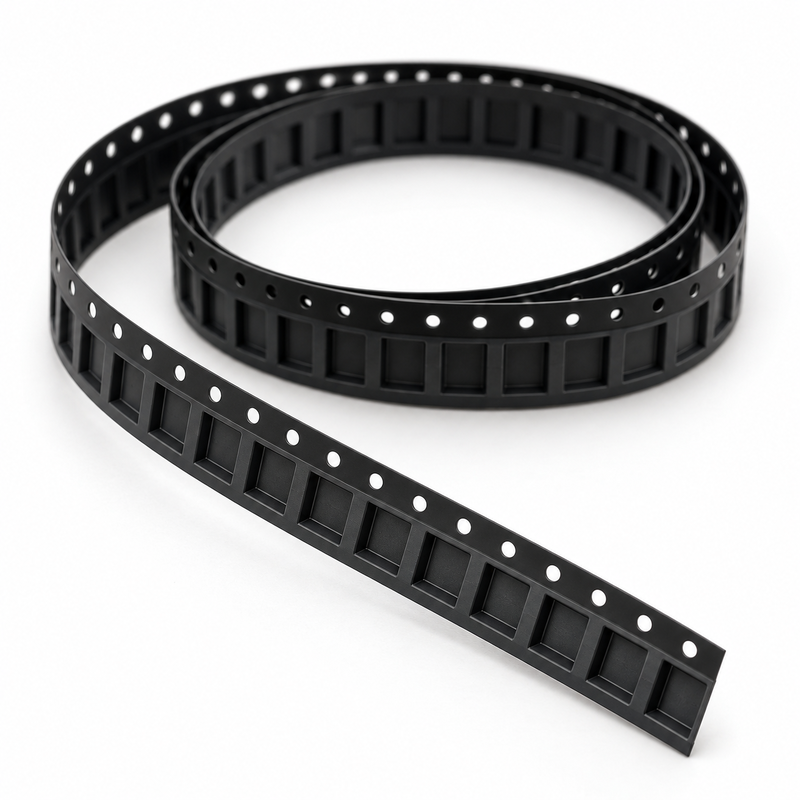

Black Embossed SMD Carrier Tape

Black Embossed SMD Carrier Tape
Black Embossed SMD Carrier Tape

Large Image :  Black Embossed SMD Carrier Tape

Product Details:
Place of Origin: CHINA
Brand Name: ACE DELIXIN
Certification: RoHS、SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: Contact supplier for current quotation
Packaging Details: Carton packing
Delivery Time: Confirm after sample and quantity review
Payment Terms: L/C, D/A, D/P, T/T
Contact Now

Black Embossed SMD Carrier Tape

Description
MATERIAL: PS COLOR: Black
TAPE WIDTH: 8, 12, 16, 24, 32, 44, 56, 72 Or 88 Mm POCKET SIZE / DEPTH: According To Component Drawing

PRODUCT OVERVIEW
Black embossed carrier tape provides individual formed pockets for electronic components that are packaged for storage, transportation and feeding to compatible assembly equipment. Each pocket is selected around one component type so that parts can be presented in a consistent orientation. The black PS version is the focus of this listing; the historical product series also lists PC as a material alternative.

WIDTH AND POCKET SELECTION
tape widths of 8, 12, 16, 24, 32, 44, 56, 72 and 88 mm. This range describes a family of configurations, not one tape that accommodates every component. Usable pocket space, pocket depth, pitch and support features should be selected from the component drawing, including body dimensions, lead or terminal envelope and pickup requirements. Separate component types may require separate pocket tooling even when they use the same tape width.

FEEDING AND WINDING
Sprocket holes provide an indexing interface for compatible feeding equipment. Hole geometry, pocket pitch and their relationship should be reviewed with the intended feeder rather than inferred from width alone. Reel diameter, hub size, tape length per reel, winding direction and any leader or trailer requirements should be included in the order specification.

ELECTRICAL PERFORMANCE
"10E5 or NO"

QUOTATION AND SAMPLE APPROVAL
Provide a component drawing or sample, tape width preference, required pocket orientation, equipment details and order quantity. Where a new cavity is required, tooling feasibility and sample approval should precede production. Confirm pocket fit, feeding performance, winding arrangement and cover-tape behavior before volume supply.



Tag:

PS PC SMT Carrier Tape,

Non Conductive SMT Carrier Tape,

ROHS Approved SMT Carrier Tape
