Transparent Cover Tape for SMD Carrier Packaging with 5.4-81.5 mm Width Options and ESD Grade Selection
Description
COLOR:
Transparent
WIDTH:
5.4-81.5 Mm
THICKNESS:
Customized
SURFACE RESISTIVITY:
10^5 - 10^9
PRODUCT OVERVIEW
Transparent cover tape is applied over the openings of compatible embossed carrier tape to help retain electronic components during the agreed handling and feeding process. It is a separate flat film, not the pocketed carrier itself. The carrier provides the component cavities and indexing features; the cover supplies a removable closure across the pocket openings.
WIDTH AND ALIGNMENT
range of 5.4-81.5 mm. Cover width must be selected from the carrier drawing, pocket opening and sealing lands. Check alignment and the feeding interface using the actual packaging equipment before approving a production configuration.
VISUAL CHECKS

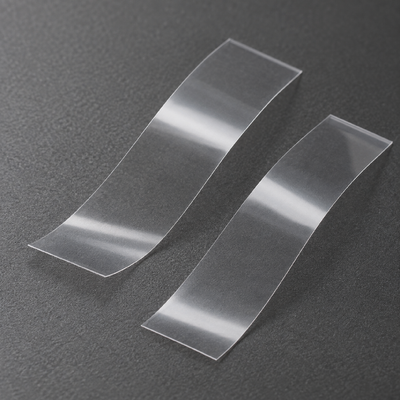

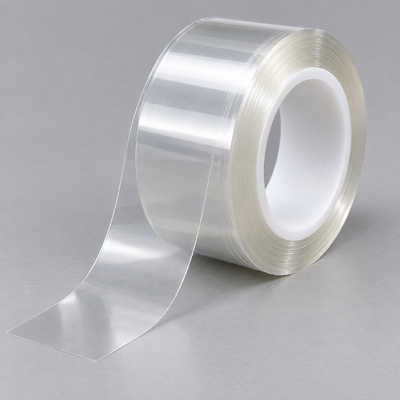

A transparent cover can allow visual checks of the packaged components, but optical appearance depends on film construction, finish, lighting and the component itself. Automated inspection suitability should be evaluated on representative samples. Images illustrate film form and application only;
